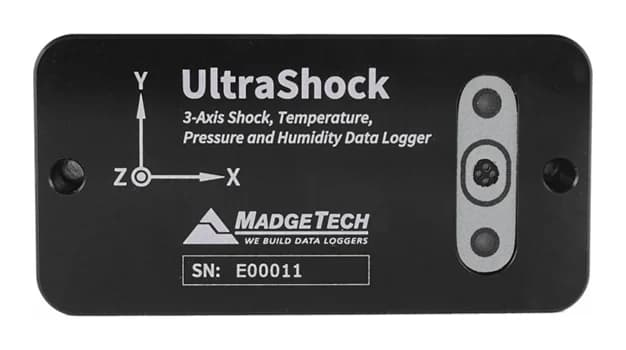

UltraShock – Temperature, Humidity, Pressure and Tri-Axial Shock Data Logger
MadgeTech UltraShock tri-axial shock data logger (±15 g, ±100 g, ±300 g) that also records temperature, humidity and pressure. 1 kHz sampling, USB-C.
Key features
- Three switchable shock ranges: ±15 g, ±100 g and ±300 g
- Logs temperature, humidity and pressure alongside shock
- Samples at 1 kHz to catch short, sharp impacts
- Stores more than 3.5 million readings
- Rechargeable battery; charging and downloads over USB-C
Genuine MadgeTech product, supplied by an authorised distributor.
Overview
Damage in transit often stays hidden until the equipment fails. The UltraShock gives you the evidence. It records impacts on all three axes, together with the temperature, humidity and pressure the package went through, so you can see exactly when and how a shipment was mishandled.
It samples at 1 kHz, offers three measurement ranges to suit anything from delicate instruments to heavy machinery, and stores more than 3.5 million readings. The battery is rechargeable, and both charging and downloads use a USB-C cable. A standard calibration certificate is included.
Typical uses
- Monitoring shock and conditions while sensitive equipment is shipped
- Drop, impact and handling tests
- Machinery and vibration-sensitive process monitoring
Need it for a single shipment or test? Ask about our data logger rental service.
Specifications
- Acceleration ranges
- ±15 g, ±100 g and ±300 g (tri-axial)
- Also records
- Temperature, humidity and pressure
- Memory
- 3,593,358 readings, non-volatile
- Sampling rate
- 1 kHz
- Battery
- Rechargeable; 20–29 days depending on settings (MadgeTech spec sheet)
- Operating range
- -20 °C to +60 °C, 0 %RH to 95 %RH non-condensing
- Protection
- IP64
- Calibration
- Standard calibration certificate
Specifications are provided by the manufacturer and may change. Please confirm with us before ordering.
