PR2000 – Pressure Data Logger with LCD Screen
MadgeTech PR2000 pressure data logger with ¼ in. NPT fitting and LCD for real-time readings, 262,000+ reading memory and ISO 17025 accredited calibration.
Key features
- Live pressure readings on the built-in LCD
- Threads straight into ¼ inch NPT process connections
- Stores 262,144 readings
- Ranges from 0–30 PSI up to 0–5000 PSIA
- Supplied with an ISO 17025 accredited calibration certificate
Genuine MadgeTech product, supplied by an authorised distributor.
Overview
The PR2000 lets you watch and record pressure with one instrument. It threads directly into a ¼ inch NPT port, shows the current reading on its LCD, and logs up to 262,144 readings for later analysis. Versions run from 0–30 PSI through to 0–5000 PSIA, with absolute or gauge options on the lower ranges.
With the display switched off it runs for about a year at a one-minute interval, and an AC adapter is available for permanent installations. An ISO 17025 accredited calibration certificate is included.
Typical uses
- Compressed air, gas and hydraulic line monitoring
- Water distribution and pumping systems
- Leak and pressure-decay testing
For submersible or high-temperature pressure measurement, see the PRTemp140.
Specifications
- Pressure ranges
- 0–30, 100, 300, 500 PSIA/PSIG; 0–1000 and 5000 PSIA
- Accuracy
- 0.25 % typical at +25 °C (2 % FSR)
- Fitting
- ¼ inch NPT
- Display
- LCD for real-time readings
- Memory
- 262,144 readings
- Battery
- 1 year at a 1-minute reading rate with display off
- Operating range
- -20 °C to +60 °C
- Calibration
- ISO 17025 accredited certificate
Specifications are provided by the manufacturer and may change. Please confirm with us before ordering.
Related products
MadgeTech

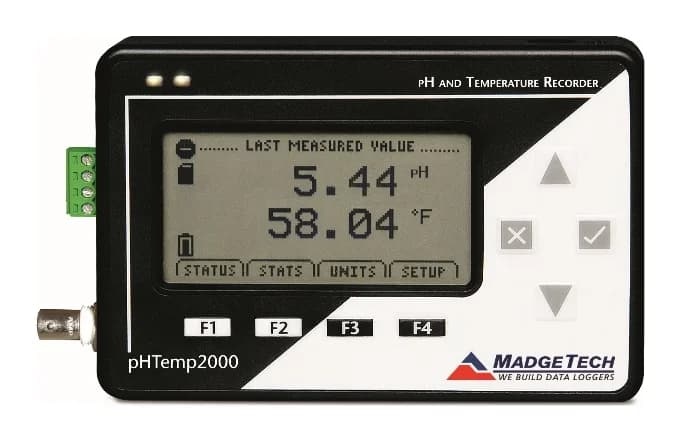

pHTemp2000 – pH and Temperature Data Logger with LCD Display
